НОВАЯ (в наличии)
Плис FPGA Xilinx Artix 7
XC7A35T-1CSG325I -50шт
XC7A35T-2CSG325I - 448шт
XC7A50T-1CSG325I - 25шт

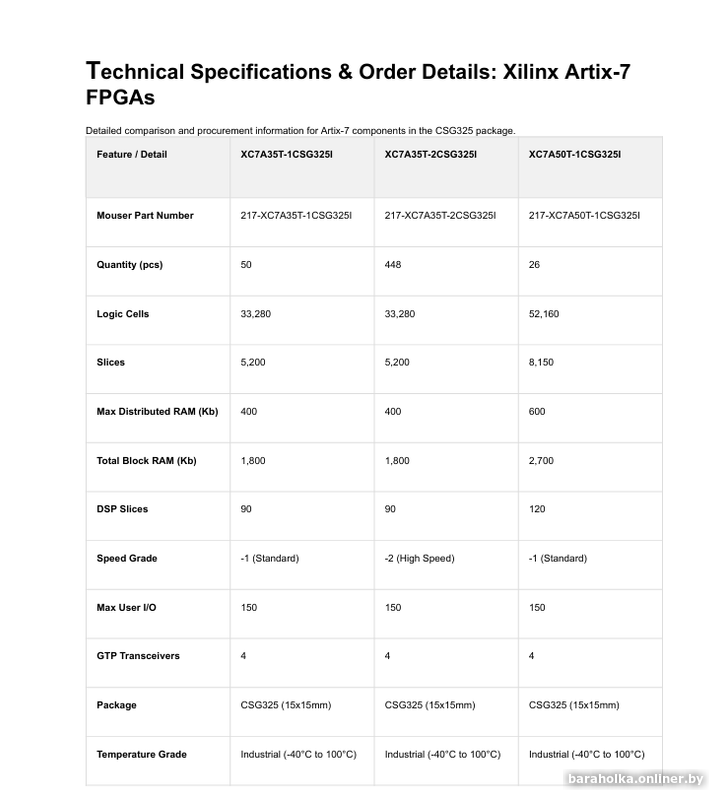

Technical Specifications & Order Details: Xilinx Artix-7 FPGAs
Detailed comparison and procurement information for Artix-7 components in the CSG325 package.
Feature / Detail XC7A35T-1CSG325I XC7A35T-2CSG325I XC7A50T-1CSG325I
Mouser Part Number 217-XC7A35T-1CSG325I 217-XC7A35T-2CSG325I 217-XC7A50T-1CSG325I
Quantity (pcs) 50 448 26
Logic Cells 33,280 33,280 52,160
Slices 5,200 5,200 8,150
Max Distributed RAM (Kb) 400 400 600
Total Block RAM (Kb) 1,800 1,800 2,700
DSP Slices 90 90 120
Speed Grade -1 (Standard) -2 (High Speed) -1 (Standard)
Max User I/O 150 150 150
GTP Transceivers 4 4 4
Package CSG325 (15x15mm) CSG325 (15x15mm) CSG325 (15x15mm)
Temperature Grade Industrial (-40°C to 100°C) Industrial (-40°C to 100°C) Industrial (-40°C to 100°C)
В наличии
Стоимость за 1 шт 80евро(по курсу на день покупки)
