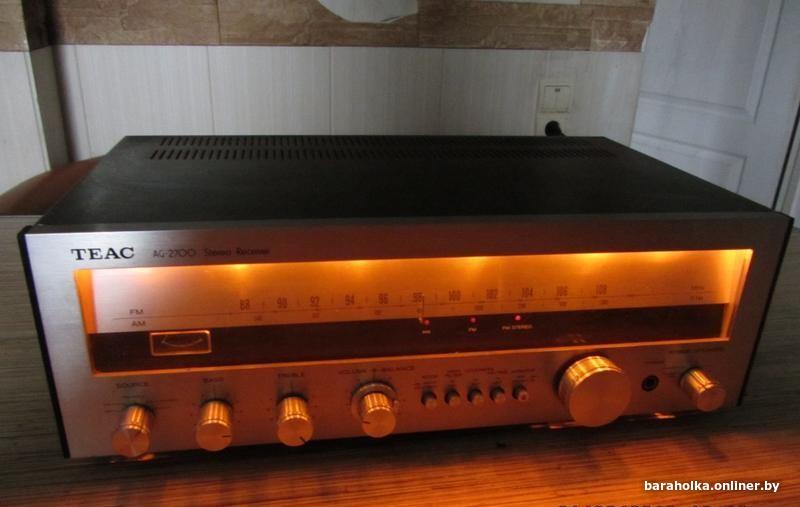

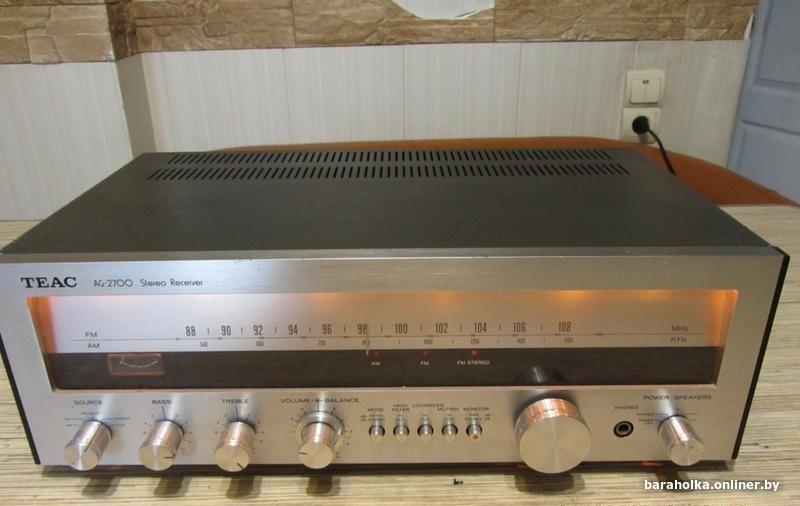

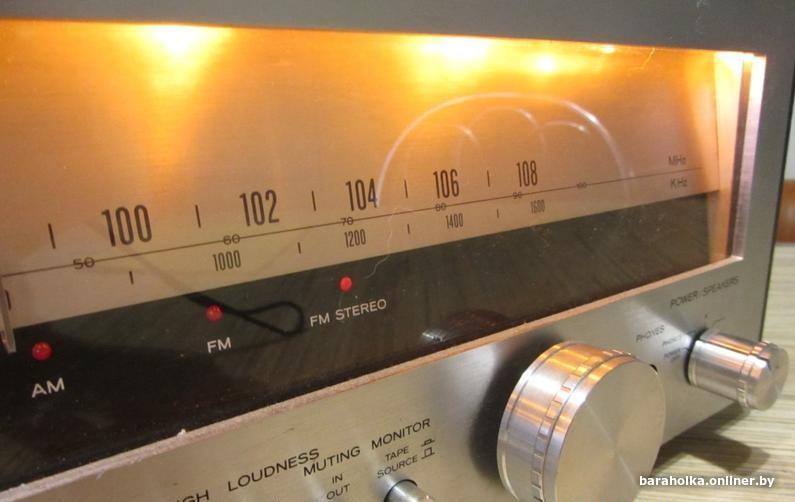

TEAC AG-2700 Транзисторный стерео ресивер 1977г. В ремонте не был. Все родное. Аналоговая шкала с индикатором точной настройки.
Сделано в Японии.
Встроенный ММ фонокорректором.
Регулятор громкости с отключаемой тонкомпенсацией.
Фрезерованные ручки управления.

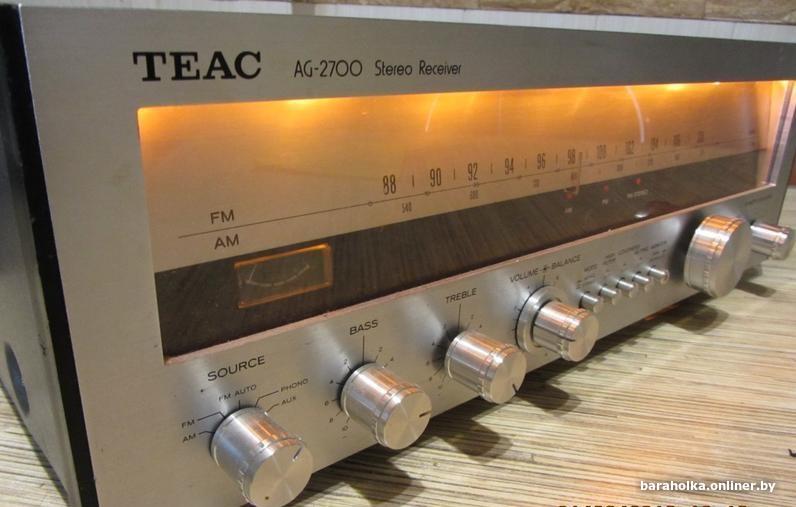

Матированная алюминиевая передняя панель.
Rated Power: 20W + 20W at 8 ohms
Harmonic Distortion: 0.2% at rated power Output
Load Impedance: 4 — 16 ohms
Damping Factor: 30 at 8 ohms
Frequency Response: 20 - 20,000 Hz ± 1 dB
Signal to Noise Ratio: better than 70 dB
Channel Separation: 50 dB
Tone Control: 100 Hz ± 10 dB, 10,000 Hz ± 10 dB
Loudness Control: 100 Hz + 6 dB, 10,000 Hz + 10 dB
Filter: High cut: 10,000 Hz — 12 dB
FM TUNER SECTION:
Receiving Frequency: 88 — 108 MHz
Sensitivity: 13.2 dBf(2.5 µV)
Capture Ratio: below 2.5 dB
Image Rejection: better than 50 dB (98 MHz)
IF Rejection: better than 70 dB (98 MHz)
Selectivity: better than 40 dB
Signal to Noise Ratio: better than 60 dB
Harmonic Distortion: below 0.5%
FM Stereo Separation: better than 30 dB (1,000 Hz)
Antenna Input Impedance: 300 ohms balanced, 75 ohms unbalanced
AM TUNER SECTION:
Receiving Frequency: 535 — 1,605
kHz Sensitivity: 200 i.V/m (IHF)
Image Rejection: better than 40 dB IF Rejection: better than 40 dB
Selectivity: better than 25 dB.
Dimensions (WHD) 450x153x315 mm
Net weight 9 kg
